> >100m HDBT 8x8 Matrix, Support 18G, HDR, 4K2K@60Hz, YUV 4:4:4
100m HDBT 8x8 Matrix, Support 18G, HDR, 4K2K@60Hz, YUV 4:4:4 View larger

100m HDBT 8x8 Matrix, Support 18G, HDR, 4K2K@60Hz, YUV 4:4:4

NS-MX88-100mB

New product

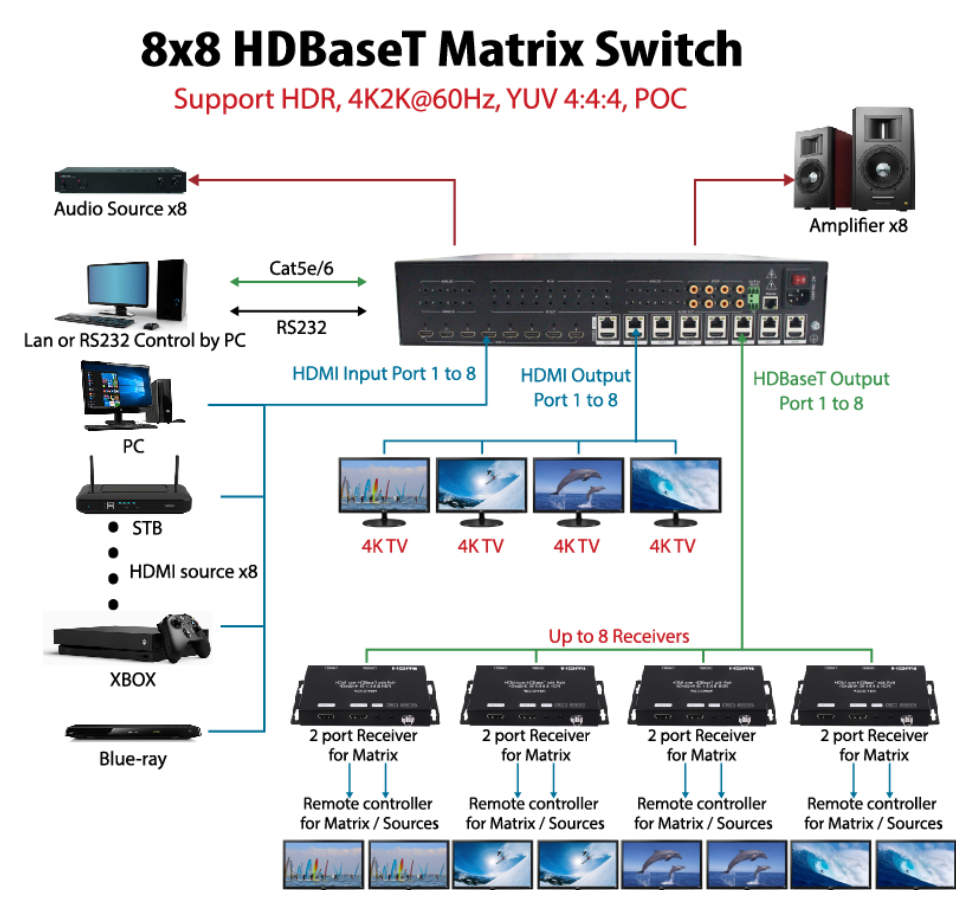

The 100m 8x8 HDMI 2.0 HDBaseT Matrix with 8 hdmi loop out. It supports 4K@610hzYUV4:4:4, 18Gbps, HDR.The signal switch includes 8 free switching channels, which can be configured as input/output according to the requirements, forming a matrix of 1 x 8 ~ 8 x 1, which can switch any input. Signal to 1 channel output or all channel output.

More details

More info

Features

  • Incorporate HDBaseT technology
  • HDMI 2.0 version support 4K@60HzYUV4:4:4, 18G, HDR10, Dolby Vision (HDMI LOOP)
  • Any one of the 8 HDMI Sources to any one of the 8 HDMI Displays
  • Each of the 8 outputs includes one HDBaseT output and one HDMI output simultaneously
  • Transmit up to 100m under 1080p,70m under 4K@60Hz
  • HDCP2.2/1.4 compliant
  • With wide-band Bi-Direction IR routed control(38~56KHz)
  • Support 8xAnalogAudio input
  • Support 8xAnalogAudio and 8x SPDIF Audio extraction output
  • Support RS232 pass through
  • Support Panel Button with LCD, IR Routing, RS232, TCP/IP, PC Tool Control
  • Support POC (Receiver powered by HDBaseT Matrix)
