> >HDMI 4K 120m Bi-directional Extender ,1 To 1, 1 To Many
HDMI 4K 120m Bi-directional Extender ,1 To 1, 1 To Many View larger

HDMI 4K 120m Bi-directional Extender ,1 To 1, 1 To Many

NS-EX120m-4K

New product

4K HDMI Bi-directional Extender Support 120m

The Both Transmitter / Receiver unit could transmit signal or Receive signal. Both Transmitter / Receiver with 1 local HDMI Output Port. The Extender support 1 HDMI Input to many Displays by cascading feature for Max. distance up to 120m. Users may switch HDMI/ RJ45 Input signal by pressing Push Button.

More details

More info

Features:

  • 120M long distance transmission
  • Low power consumption,low temperature and high safety
  • Both Transmitter / Receiver unit could transmit signal or Receive signal
  • Both Transmitter / Receiver with 1 local HDMI Output Port

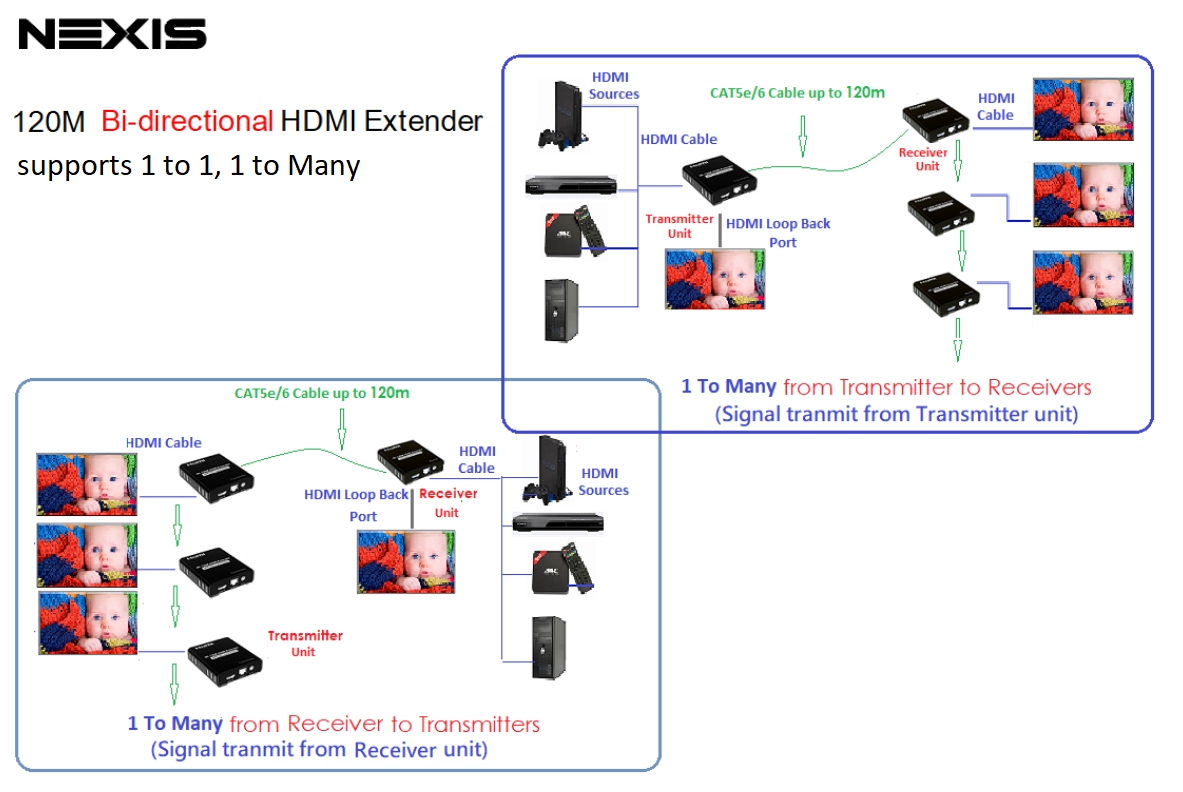

  • Support 1 HDMI Input to many Displays by cascading feature
  • Max. distance up to 120m
  • Switching HDMI/ RJ45 Input signal by pressing Push Button

Operating and Connecting:



  1. Connect source device with Transmitter by one HDMI cable the cable max length is 10meters.
  2. Connect display device with Receiver by one HDMI cable the cable max length is 10meters.
  3. Connect TX with RX by one cat5e or cat6 (recommended). the cable max length is 120meters.
  4. One pair of IR RX and IR TX cable, connect to the 3.5mm IR RX and IR TX port to the Transmitter and Receiver respectively.
  5. Connect the power supply to the TX and RX.
  6. LED Indicator:When a signal is input to work, the blue LED is steady lighting.
