HDMI KVM 50m Extender

NS-EX50m-KVM

New product

HDMI + USB KVM Extender over Single Cat cable, support 1080p

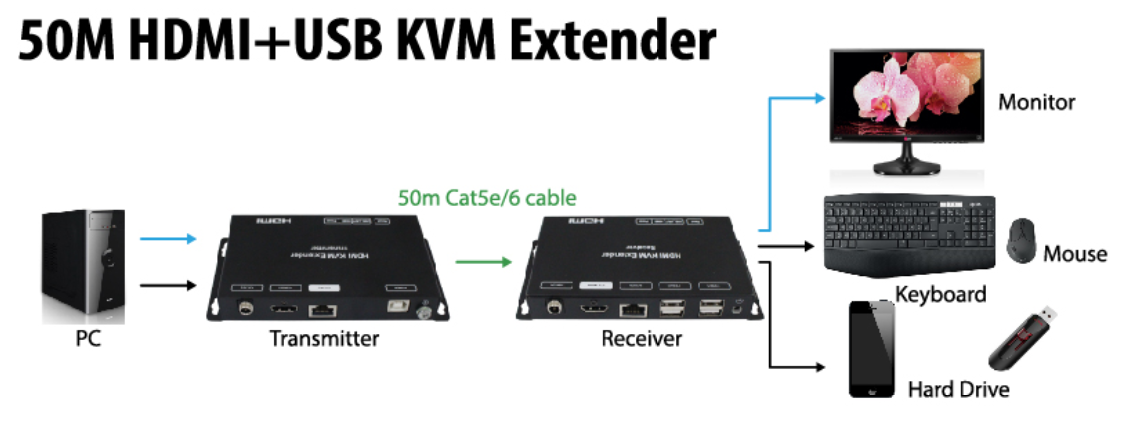

This KVM Extender allows HDMI signals to be transmitted over a Single CAT5e/6 cable . It can extend 1080p@60Hz over single Cat5e/6. The transmit distance up to 100m over single Cat5e/6 cable, and 50m over single Cat5e/6 cable under USB mode. It supports PCM2.0 and USB2.0 pass through.

More details

More info

Features:

  • HDCP1.4 compliant
  • Support bi-directional POC
  • USB 2.0 pass through
  • Support 1080P@60Hz, bandwidth 1.65Gbps
  • Transmit distance up to 50m at USB Mode
  • Transmit distance up to 100m at Non-USB mode
  • Each set includes one Transmitter and one Receiver
  • Support PCM2.0, audio sampling rate: 44KHz, 48KHz
