> >HDBT Wallplate 70m Extender, Support 4k @60hz YUV 4:4:4, HDR10, HDCP2.2
HDBT Wallplate 70m Extender, Support 4k @60hz YUV 4:4:4, HDR10, HDCP2.2 View larger

HDBT Wallplate 70m Extender, Support 4k @60hz YUV 4:4:4, HDR10, HDCP2.2

NS-EX40m-BW

New product

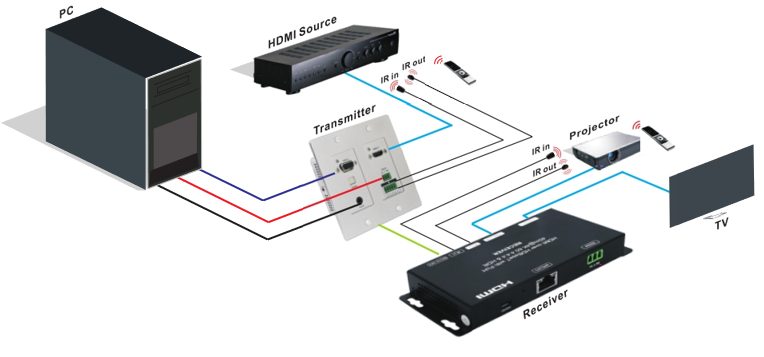

This Wallplate Extender allows HDMI signals to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS232 and 2-way IR control functionality over the same CAT5e/6 cable. It can extend 4K@60Hz HDR 10 over a HDBaseT link and upto 40M ! The slimmest HDBaseT design, making it perfect to mount behind ultra thin TVs.

More details

More info

Features

  • Transmitter in North American standard Wall plate
  • Bandwidth up to 18Gbps, Resolution up to 4k @60hz YUV 4:4:4
  • Support Dolby TruHD, DTS-HD Master Audio, 7.1 audio channel
  • Transmit up to 70m @1080p, 40m @4k
  • Support HDR10, 3D
  • Support VGA or HDMI in, Switch by the Switch button
  • Bi-directional IR (20-60KHZ)and RS232 Pass through
  • Bi-directional POC
  • HDCP2.2/ HDCP1.4 Compliant
  • Support 2.0 Analog Audio embedded
