HDBT Wallplate 70m Extender, Support 4k @60hz YUV 4:4:4, HDR10, HDCP2.2 View larger

HDBaseT 100m Extender support 4K2K@60Hz YUV 4:4:4


New product

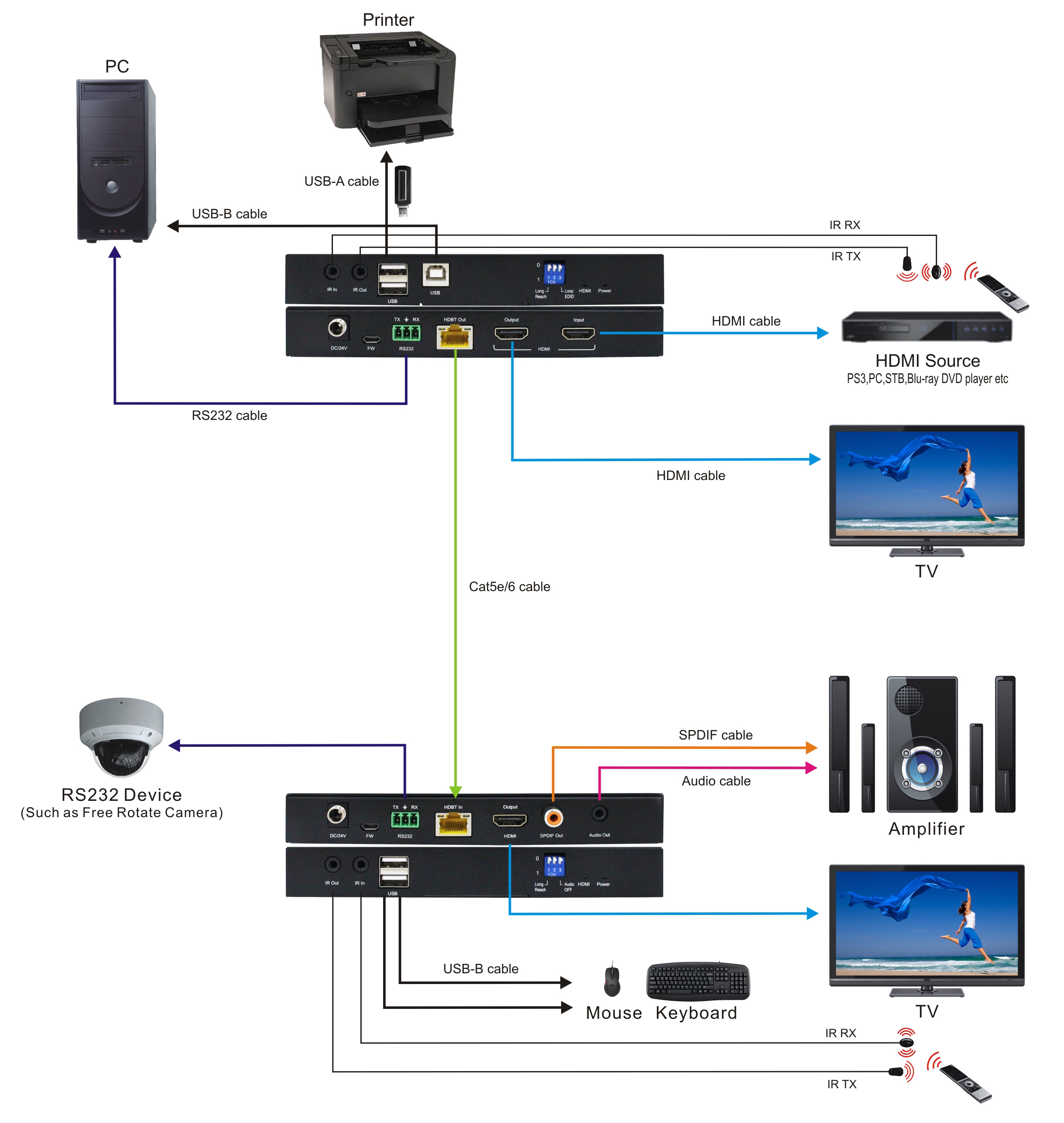

The HDBaseT Ultra Slim Extender Kit allows HDMI signals to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS232 and 2-way IR control functionality over the same CAT5e/6 cable. It can extend 4K@60Hz YUV4:4:4 over a HDBaseT link and upto 100M.The slimmest HDBaseT design, making it perfect to mount behind ultra thin TVs.

More details

More info

5. Features

  • Bandwidth up to 18Gbps, resolution up to 4K2K@60hz YUV 4:4:4
  • Transmit up to 150m under 1080p,100m under 4K
  • Support HDR10
  • Support Bi-directional wide band IR and RS232 Pass through
  • Support Dual POC (Receiver powered by transmitter or transmitter powered by Receiver)
  • Support HDCP2.2/ HDCP1.4 Compliant
  • Support Copy local and remote EDID functionality
  • Supports audio extractor rate up to 192kHz
  • Support PCM7.1,Dolby,DTS
  • With micro USB port for firmware upgrade
