MIni HDMI Extender Over Fiber 300m
NS-HFE-300M4K
New product
HDMI Optical modules Extender support transmission of an uncompressed lossless HDMI 1.4a. Signal over multimode optical fiber at 850nm, up to distances at 300m, at a resolution of 4Kx2K. HC3511K2-T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers and HC3511K2-R converts the serial data back to an HDMI signal.
More info
Features
- HDMI 1.4a
- Support 4Kx2K@30 Resolution
- Support 3D
- Support HDCP
- DDC CEC HDP Signal Support
- Support up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber cable
- Integrated USB Connector For Power
- Hot-Pluggable
- 850nm VCSEL and PIN Photo detector
- 2-Wire Interface

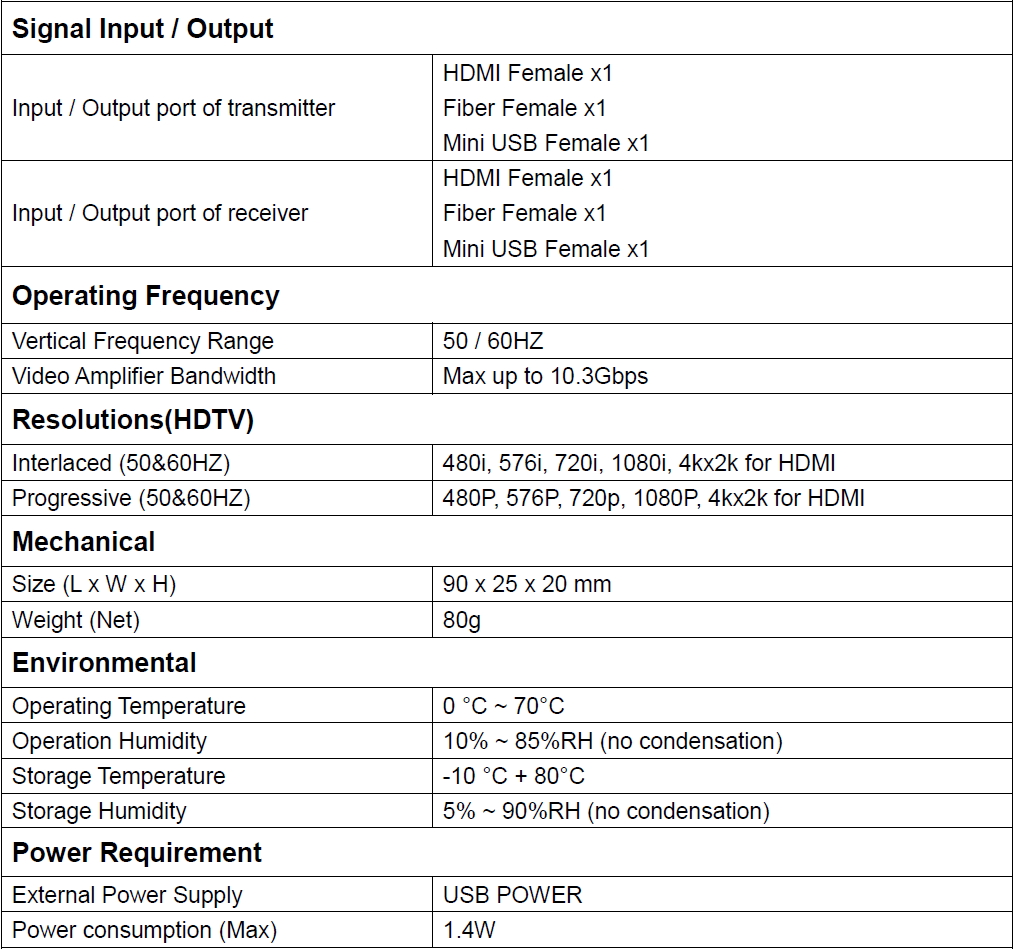

Specification
Package Content
- Main unit No. 1 Transmitter x1
- Main unit No. 2 Receiver x1
- 2 pieces of USB lines x1
- User Manual x1
