> >4K HDMI Matrix 4x2, support 2 audio output
4K HDMI Matrix 4x2, support 2 audio output View larger

4K HDMI Matrix 4x2, support 2 audio output

NS-MX4x2-2A

New product

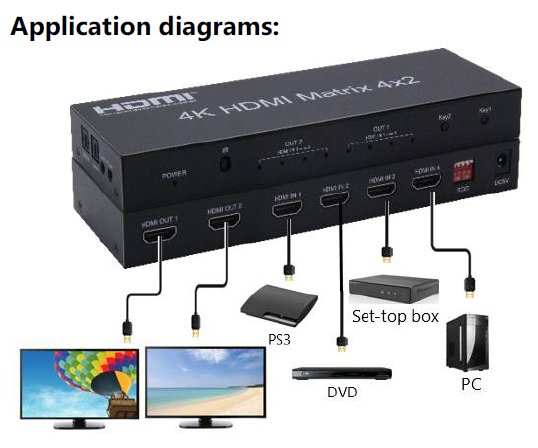

The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio putput by optical fiber or stereo head phone.

More details

More info

Features

  • Support HDMI 1.4b/HDCP2.2
  • Support 3D video format
  • Support highest resolution up to 3840*2160/30Hz
  • Support 3.4Gbps x 3 data rate and tmds clock up 340Mhz
  • Support deep color 8/10/12 bit
  • Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time
  • 4 HDMI inputs switch and split to 2 HDMI displays
  • Support LPCM/Dolby/DTS 5.1 channel

Package Content

  • 4K HDMI Matrix 4x2   x1
  • IR Remote Control     x1
  • 5V Power Adapter      x1
  • User Manual              x1
