HDMI 3x3 Video Wall Controller View larger

HDMI 3x3 Video Wall Controller

NS-VW3x3

New product

The 3x3 video wall controller, support 1HDMI input and 9 HDMI output. The main function is to divide a complete HDMIHD image signal into 9 video display unit (such as Projection unit, LCD TV, etc.), Complete with 9 HDMI high-definition video display units to form a large dynamic image screen.

More details

More info

Features:

  • * Support input HDMI1.3
  • * Support 1 HDMI input, 9 HDMI outputs
  • * Support input resolution @1920x1080P,24/30/50/60HZ, and lower
  • * Support output resolution @1920x1080P 60HZ
  • * Support multiple splicing modes, easy to operate, plug & play

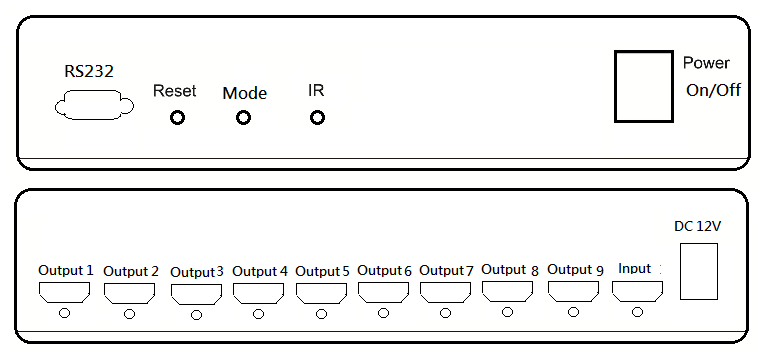

Interface Introduction:

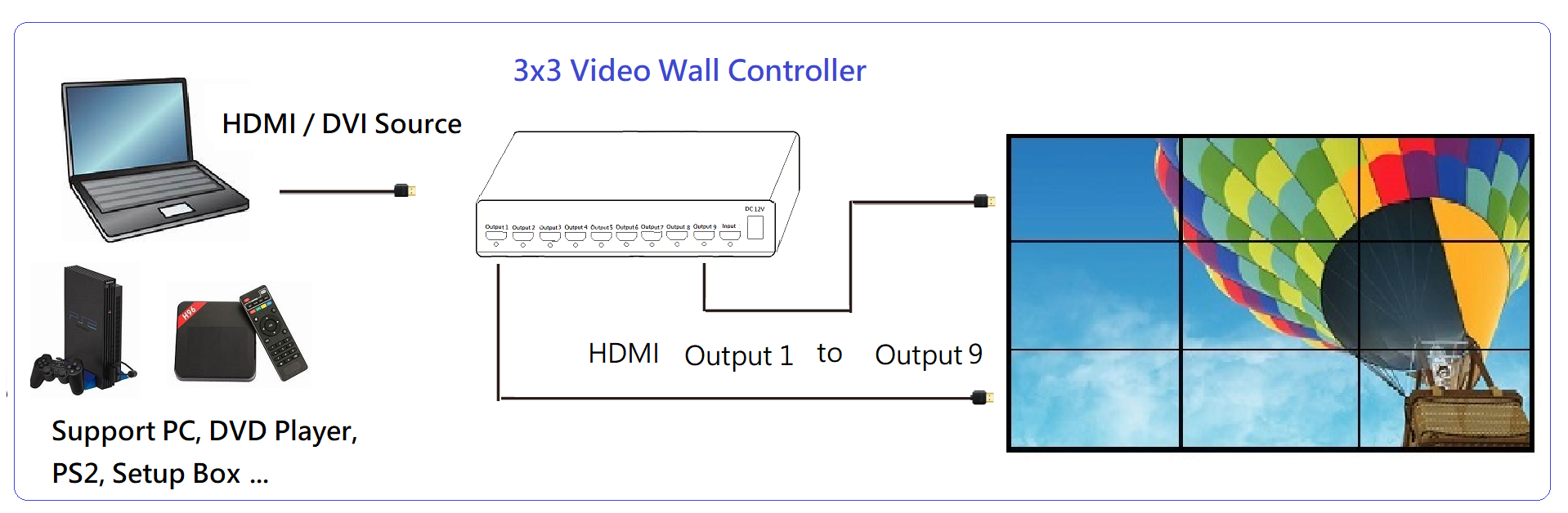

Connection Diagram:

Operation Steps:

1. Connect HDMI Source to HDMI Input port, Connect HDMI Output to Monitors from Port 1 to 9.

2. Plug in AC Power Adaptor and Power On the VideoWall Controller.

3. Set up Splicing Mode by pressing the MODE button on the unit or the Remote Controller.

Package Contains:

1. 3X3 Video Wall Controller x1

2. Power Adapter                x1

3. User Manual                   x1
