4K 2x2 VIDEO WALL CONTROLLER
NS-VW2x2-4K30
New product

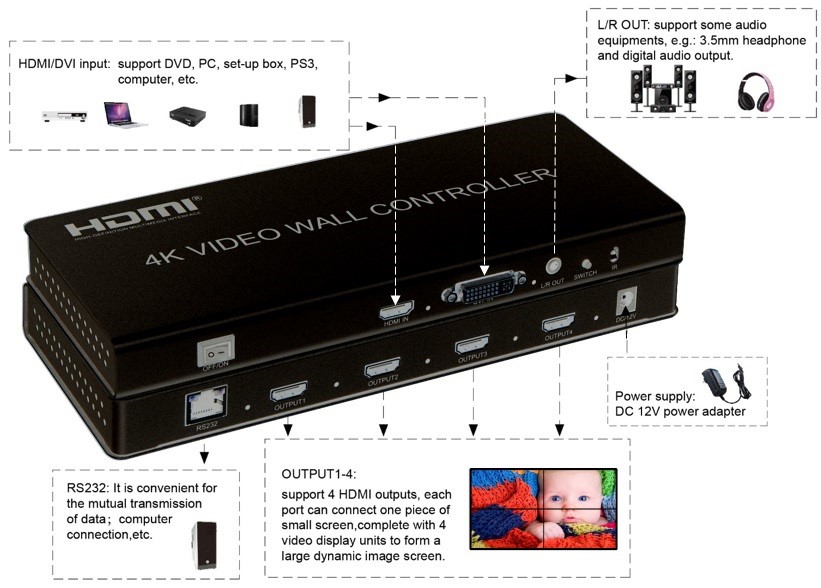

The 4K 2x2 Video Wall Controller, support one way HDMI / DVI input and 4 HDMI output, the main function is to divide a complete HDMI,DVI HD image signal into 4 blocks and assign to 4 Video Monitors, such as Rear Projection, LCD TV, etc., Complete with 4 HDMI high-definition Video display to form a large image screen.
More info
Features:
- Support 1 DVI or HDMI input
- Input support HDMI1.4, HDCP1.4
- Support 4 HDMI outputs, 1 x 3.5mm audio output
- Input resolution include 1920x1080P 25/30/50/60HZ,3840x2160P 25/30HZ
- Output resolution include 1920x1080P 25/30/50/60HZ
- Input format : YUV422 16bit, RGB444 24bit
- Output format: RGB444 24bit
- Support RS232 protocol (Net port RJ45)
- Easy to operate, plug and play
- DC12V/2A power adapter
