4 Inputs To 1 HDMI Output Converter Box


New product

The 4 Inputs to 1 HDMI Converter Box allows 4 different sources, Analog Video & Audio, VGA+3.5mm Audio, mini Displayport & HDMI signal & USB-C input convert to HDMI signal output. This model support source auto detect function, so user is able to switch the Input sources without press button. And it supports HDMI Output resolution up to 4K2K@60.

More details

More info


  • Allow 4 different sources, Analog Audio & Video, VGA+3.5mm Audio, mini Displayport, HDMI Input and USB-C convert to HDMI Output
  • User is able to charge their devices through USB port and USB-C
  • Support Ethernet by-pass function
  • Source Auto detect function
  • The HDMI Output resolution is up to4K2K@60

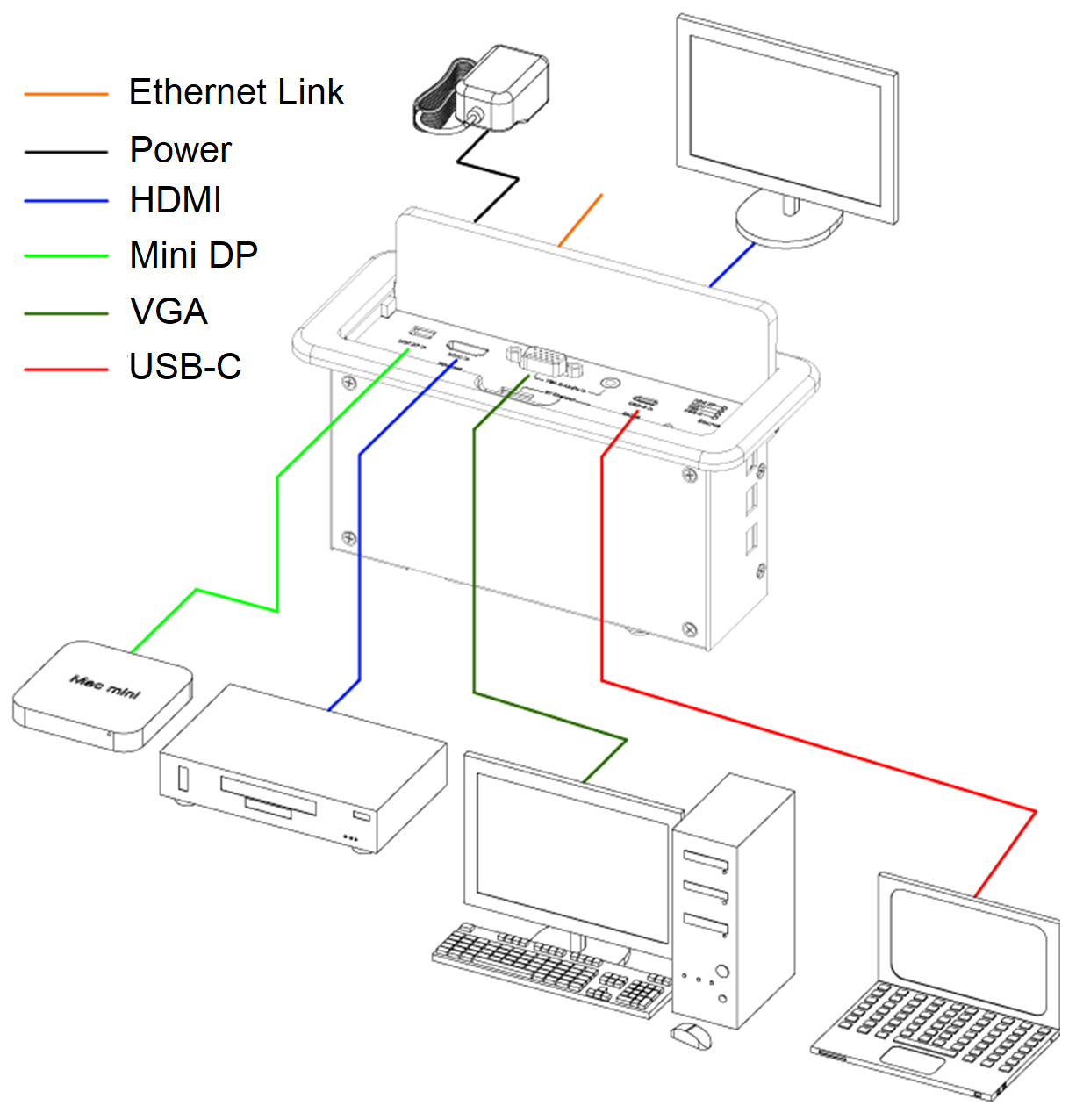

Application diagrams

Package Content

  • 4 Inputs to 1 HDMI Output Converter Box  --- 1pc
  • Power Adapter --------------------------------------- 1pc
