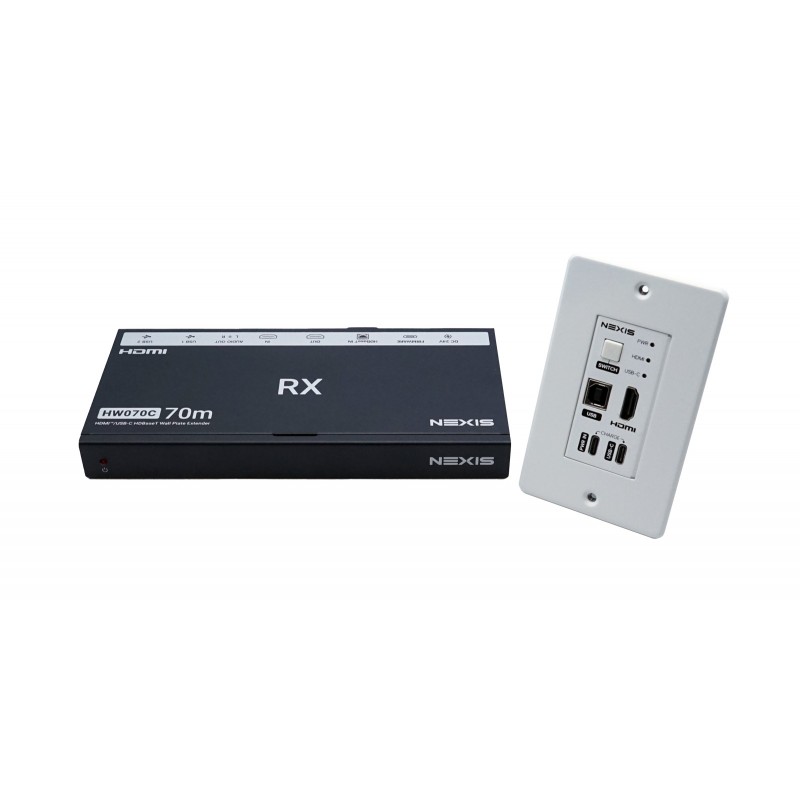

HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate

HW070C

New product

  • HDMI HDBaseT extender with a wall plate design.
  • The transmitter wall plate features an HDMI, a USB-C input, and a USB Type-B port for PC connection.
  • The receiver unit has an HDMI output and a USB Type-A port for connecting a keyboard, mouse, or other USB devices.
  • It supports a distance of 70m at 1080P or 40m at 4K over a single CAT6/6a/7 cable.

More details

More info

 Manual

 Spec sheet

Features

  • Supports HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards.
  • Supports 18Gbps bandwidth.
  • Supports a maximum resolution of 4K@60Hz 4:4:4.
  • The HDBaseT output channel can extend video signals up to 70m at 1080P or 40m at 4K over a single CAT6/6a/7 cable.
  • Supports HDR10 and HDR10+.
  • Supports audio formats such as Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch.
  • The input ports support HDMI and USB-C.
  • The wall plate is a US one-gang format.
  • Supports both automatic and manual input switching.
  • USB 2.0 extension with the receiver has a max speed of 127Mbps and supports USB devices such as flash drives, webcams, and printers.
  • Supports PoE (only from the receiver to the transmitter).
  • The USB-C port supports charging.
  • Certified with CE, FCC, and RoHS standards.

Diagram

Specifications

Technical
HDMI Compliance HDMI 2.0b, DisplayPort 1.2a
HDCP Compliance HDCP 2.2
Video Bandwidth 18 Gbps
Video Resolution

4096×2160@24/25/30/50/60Hz,
3840×2160@24/25/30/50/60Hz,
2048x1080p,1080p@23.98/24/25/29.97/30/50/59.94/60Hz,
1080i@50/59.94/60Hz,
720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth

8/10/12-bit
HDR HDR10, HDR10+
HDMI Audio Formats Dolby Atmos, TrueHD, Digital+, Digital; DTS X,
HD Master Audio, HD High Resolution Audio, 5.1;
PCM 2-8Ch
Transmission Distance Max distance (1080p) : 230ft / 70m over CAT6/6a/7
Max distance (4K): 131ft / 40m over CAT6/6a/7
ESD Protection Human body model — ±8kV (Air-gap discharge) &
ESD Protection ±4kV (Contact discharge)
Connection

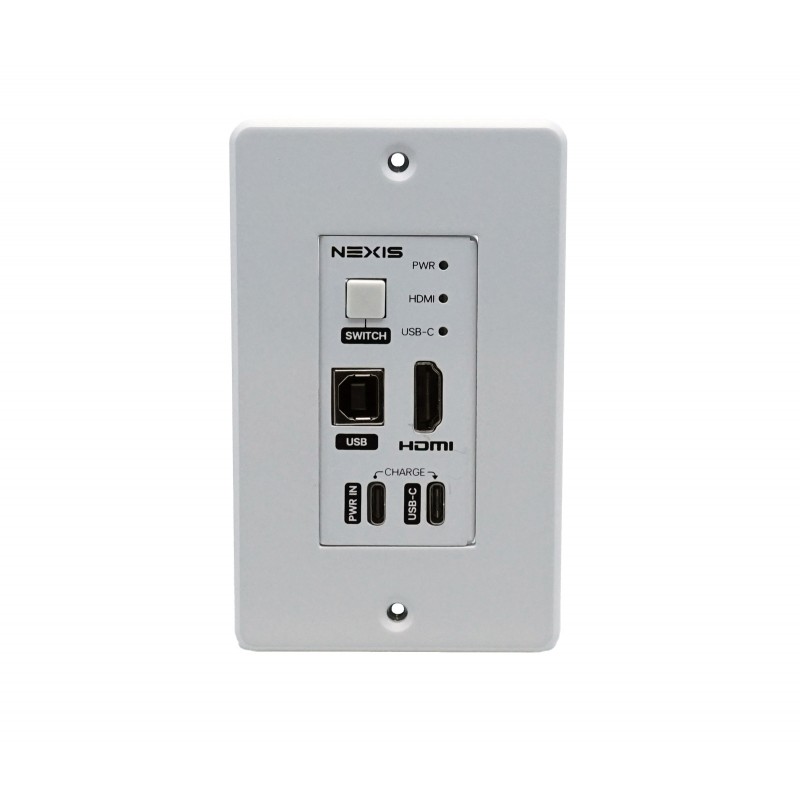

Transmitter Inputs: 1x HDMI Type A [19-pin female]
1x USB-C

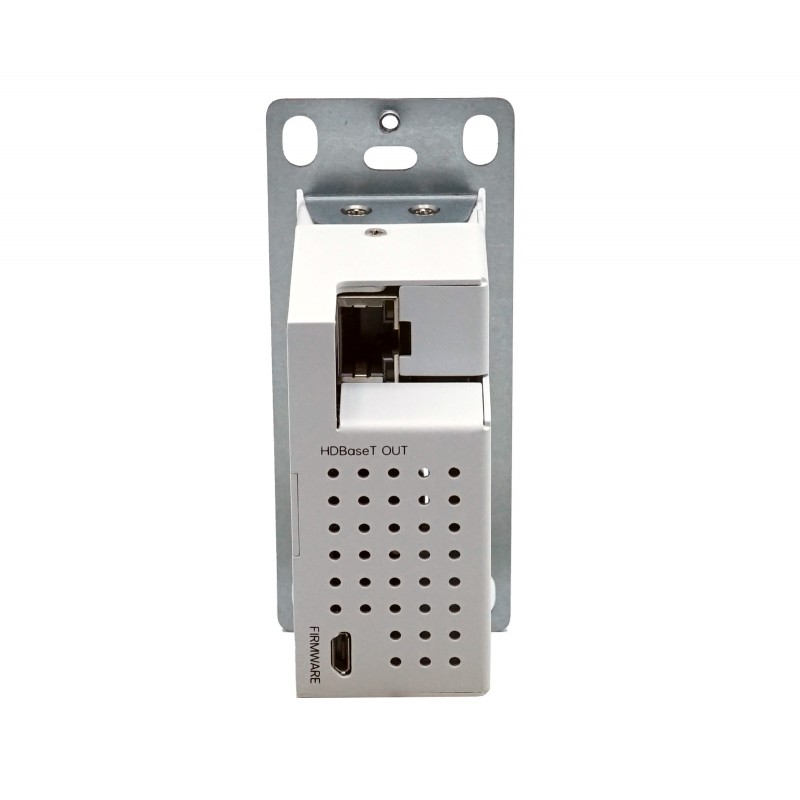

Outputs: 1x HDBaseT Out [RJ45, 8-pin female]
1x USB-C (only for charging)
Control: 1x USB-B [Micro USB, Update port]

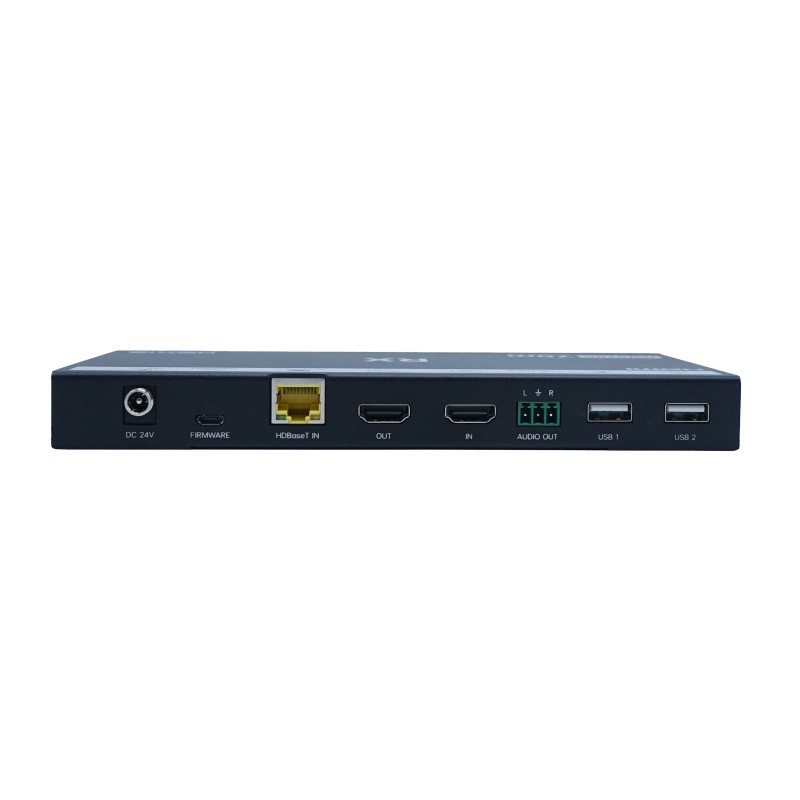

Receiver Inputs: 1x HDMI IN [Type A, 19-pin female]
1x HDBaseT IN [RJ45, 8-pin female]
Outputs: 1x HDMI OUT [Type A, 19-pin female]
1x AUDIO OUT [Phoenix jack]
Control: 2x USB [USB A TYPE]
1x FW [Micro USB, Update port]
Mechanical
Housing Metal Enclosure
Color White / Black
Dimensions Wall plate:
33.3mm [W] x 65.7mm [D] x 68.7mm [H]
Faceplate:
69.9mm [W] x 3mm [D] x 114.3mm [H]
Receiver:
200mm [W] x 98mm [D] x 23mm [H]
Weight Wall plate: 196g, Receiver: 511g
Power Supply POE (only from Receiver to Transmitter)
Power Consumption Wall plate: 9W (Max), Receiver: 11W (Max)
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
