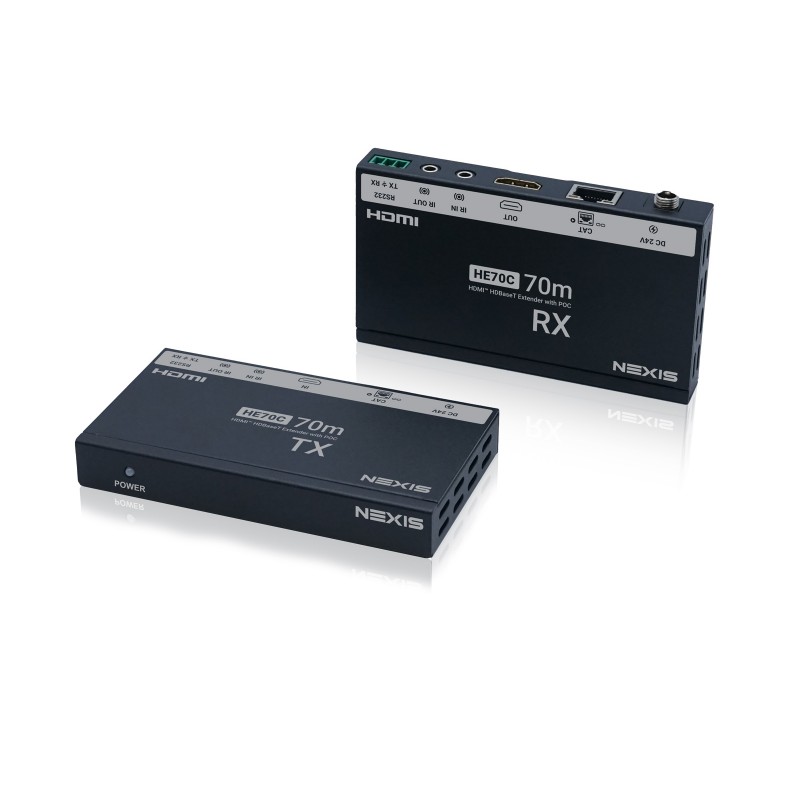

70m HDBaseT HDMI Extender via Single CAT5e/6 with POC Support

HE70C

New product

  • Long-distance signal extension: 70 meters at a maximum resolution of 1080p and 40 meters at a maximum resolution of 4K x 2K@30Hz.

  • PoC (Power over Cable) support

More details

More info

 Manual

 Spec sheet

 CE, FCC, RoHS Certificate

Feature

  • Supports PoC (Power Over Cable): Power can be supplied to either the TX (Transmitter) or RX (Receiver) unit using a single power adapter.

  • Single Cable Transmission: Uses a single UTP LAN cable (CAT-5E/6) to extend the HDMI signal over a long distance.

  • Standard UTP Termination: Follows the standard direct interconnection method.

  • Transmission Distance (Over CAT6 cable):

    • 70 meters: 1080P @60Hz@36bit; 3D 1080P@30Hz@36bit;

    • 40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D 1080P@60Hz@36bit; 4K x 2K@30Hz@24bit

  • Maximum Resolution Support: 4K x 2K@30Hz

  • Full HD Support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz, and 4K x 2K@30Hz@24bit.

  • IR and RS232 Control: Supports the transmission of IR remote control and RS232 control signals along with the HDMI signal.

  • HDCP 1.4 Compliant

  • Certifications: CE, FCC, RoHS

Diagram


* The kit includes one power adapter, which can be connected to either the transmitter or receiver unit, providing power to the entire setup through its PoC (Power over Cable) function.

Specifications


Package content

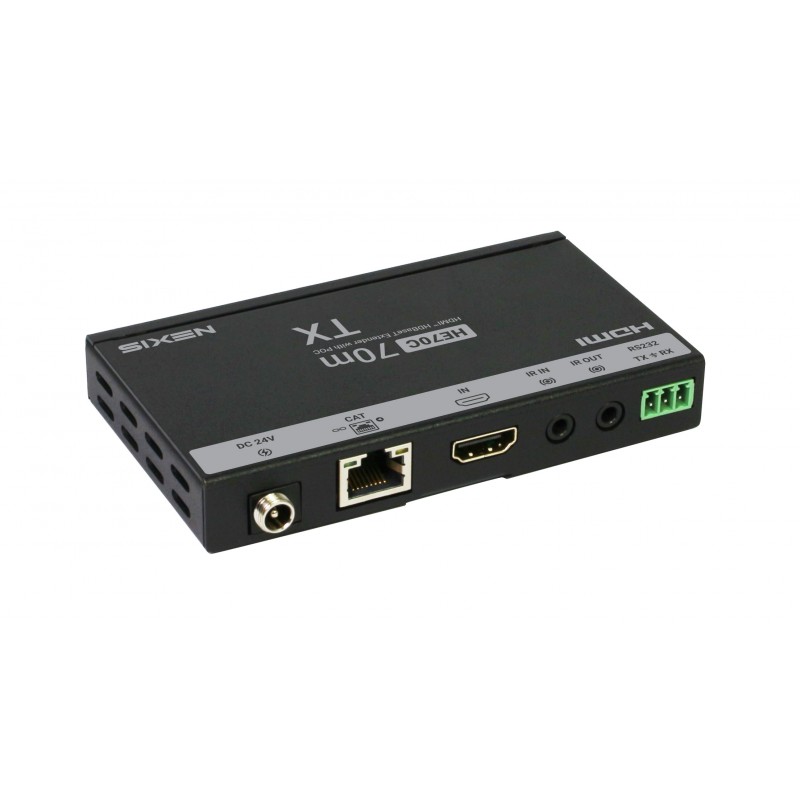

  • HDMI Extender Transmitter 1PC

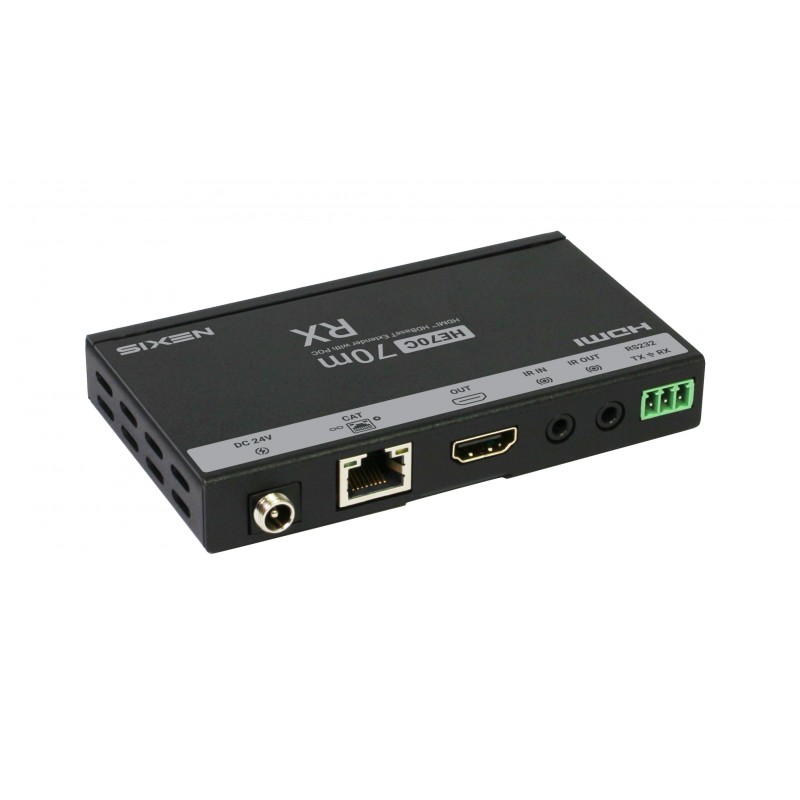

  • HDMI Extender Receiver 1PC
  • Wideband IR Tx 2PCS
  • Wideband IR Rx 2PCS
  • 24V1A DC Power Supply 1PC
  • Operation Manual 1PC
  • Mounting ears 4PCS
