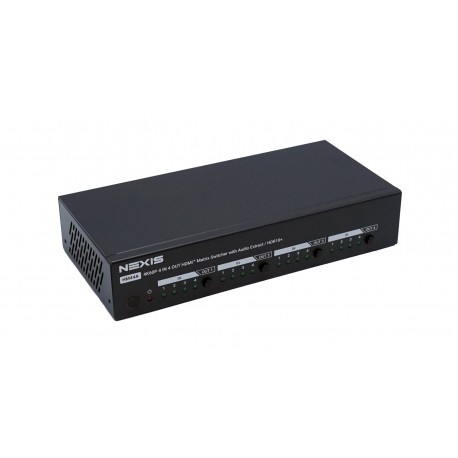

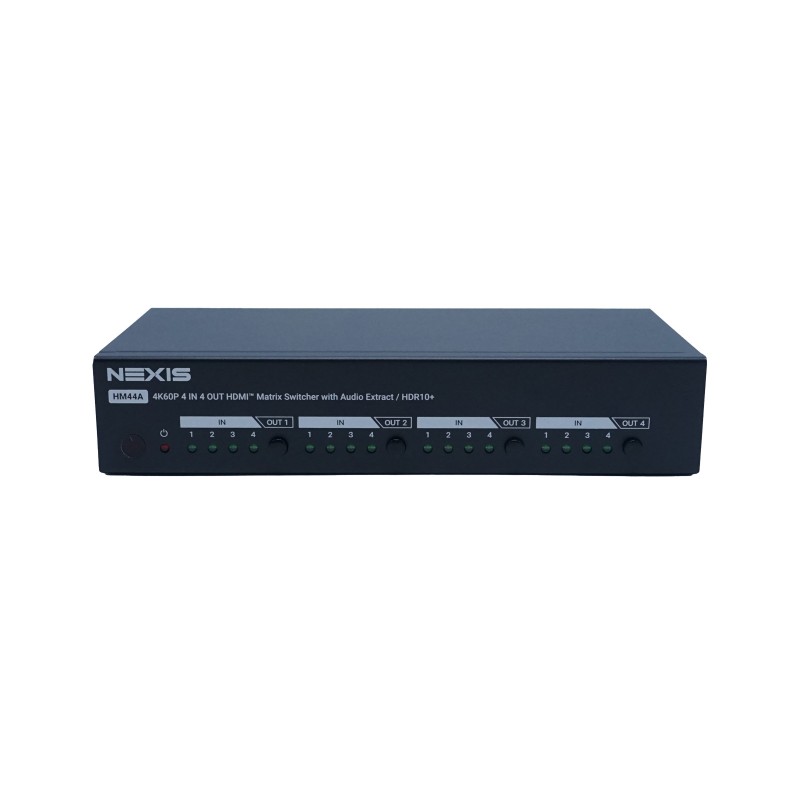

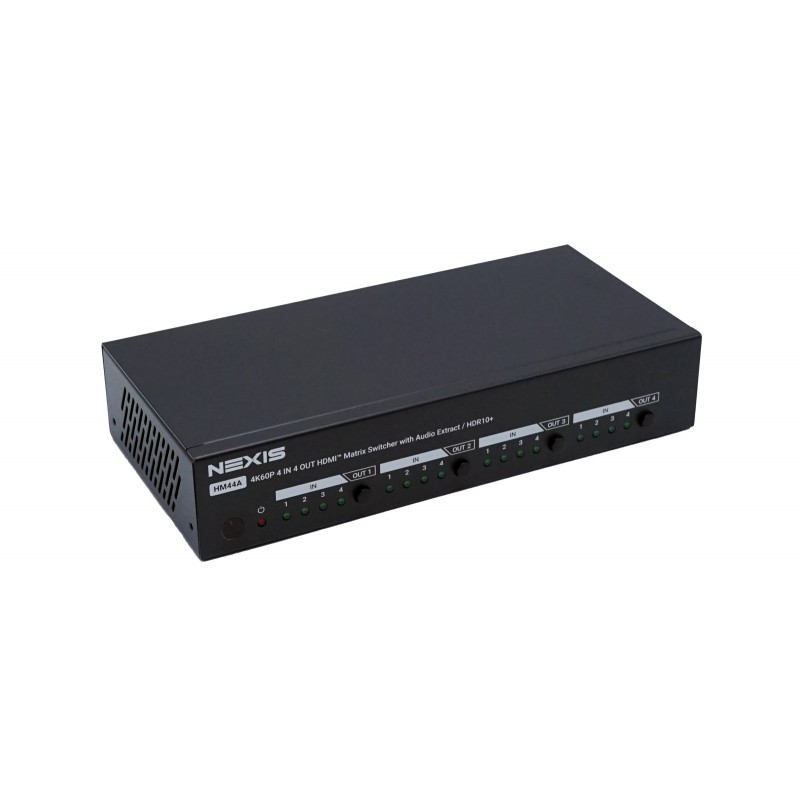

4K60 4 IN 4 OUT HDMI Matrix Switcher with Audio / HDR10+ support

HM44A

New product

  • Independent switching of 4 sources to 4 displays.
  • Supports 4K60 4:4:4. Features L/R and Coaxial audio extraction.
  • Can downscale 4K to 1080p.
  • Easy control via Web GUI.

More details

More info

 Manual

Features

  • Supports HDMI 2.0, HDCP 1.4, and DVI 1.0.
  • Features four HDMI 2.0 18G inputs, supporting up to 4K60 4:4:4 resolution.
  • Features four HDMI 2.0 18G outputs, supporting up to 4K60 4:4:4 resolution.
  • All four HDMI outputs support downscaling from 4K to 1080p.
  • Supports L/R and Coaxial audio extraction.
  • Supports ARC (Audio Return Channel) via the coaxial port.
  • Supports control via Web GUI over TCP/IP.
  • Supports CEC.
  • Supports EDID.
  • Supports control via front panel buttons, RS232, remote control, and TCP/IP.
  • Designed for easy installation.

Diagram


Specifications

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2, HDCP 1.4

Video Bandwidth

18 Gbps

Video Resolution

4K2K 50/60Hz 4:4:44K
2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200

Output Scaling

4K to 1080p

3D Support

Yes

Color Space

RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0

Color Depth

8-bit,10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
8-bit [4K60Hz (YCbCr 4:4:4)]

Coaxial Audio Formats

PCM2.0, Dolby Digital / Plus, DTS 2.0/5.15Vp-p

L/R Audio Formats

PCM2.0CH

HDR

HDR10, HDR10+. Dolby Vision, HLG

Audio Format

PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

ESD Protection

Human-body Model:±8kV (Air-gap discharge),±4kV (Contact discharge)

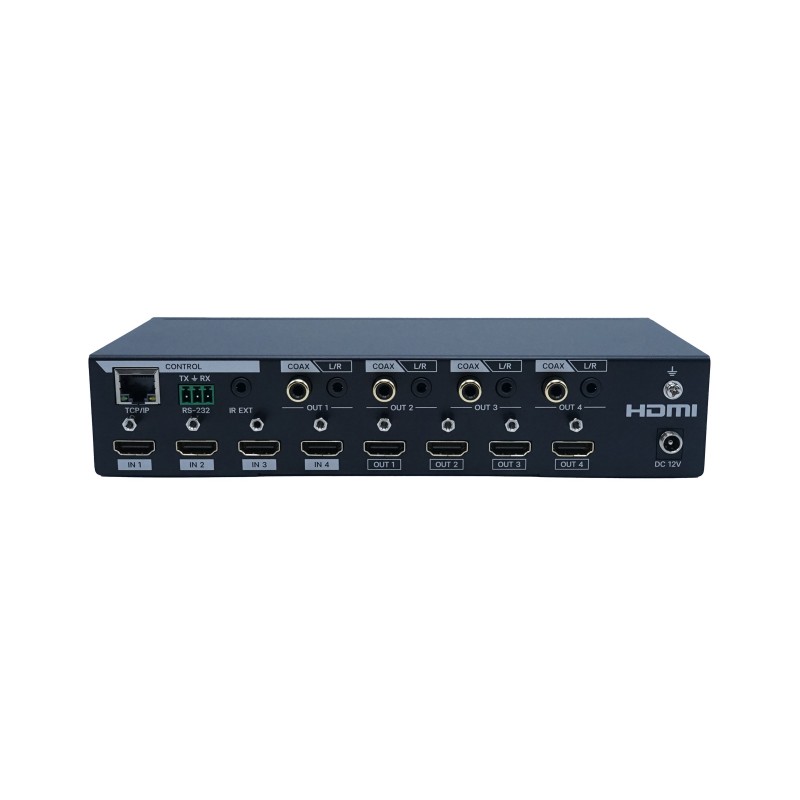

Connection



Input ports

4×HDMI Type A [19-pin female]

Output ports

4×HDMI Type A [19-pin female]
4×L/R audio out[3.5mm Stereo Mini-jack]4×COAX audio out[RCA]

Control ports

1x TCP/IP [RJ45]
1x RS-232[3-pin phoenix connector]
1x IR EXT [3.5mm Stereo Mini-jack]

Mechanical



Housing

Metal Enclosure

Color

Black

Dimensions

220mm (W)×105mm (D)×44mm (H)

Weight

792g

Power Supply

Input:AC100~240V 50/60Hz
Output:DC12V/2.5A (Locking connector)

Power Consumption

10W(max), 1.56W (Standby)

Operating Temperature

0°C~40°C/32°F~104°F

Storage Temperature

-20°C~60°C/-4°F~140°F

Relative Humidity

20~90%RH(non-condensing)

Resolution /Cable Length

4K60 / 4K30 / 1080P60

HDMI in / out

3m. / 10m. / 15m.

Package content

  • 1 x 4×4 HDMI 2.0 18Gbps Matrix Switcher
  • 1 x 12V/2.5A Locking Power Adapter
  • 1 x IR Remote
  • 2 x Mounting Ears
  • 1 x 38KHz IR Receiver Cable (1.5 meters)
  • 1 x 3-pin Phoenix Connector
  • 1x User Manual
