Features

• Supports HDMI 2.0b, HDCP2.2/HDCP1.4.
• Supports a maximum HDMI resolution of 4K2K@50/60Hz (4:4:4).
• Supports separating digital and analog audio from the HDMI source.

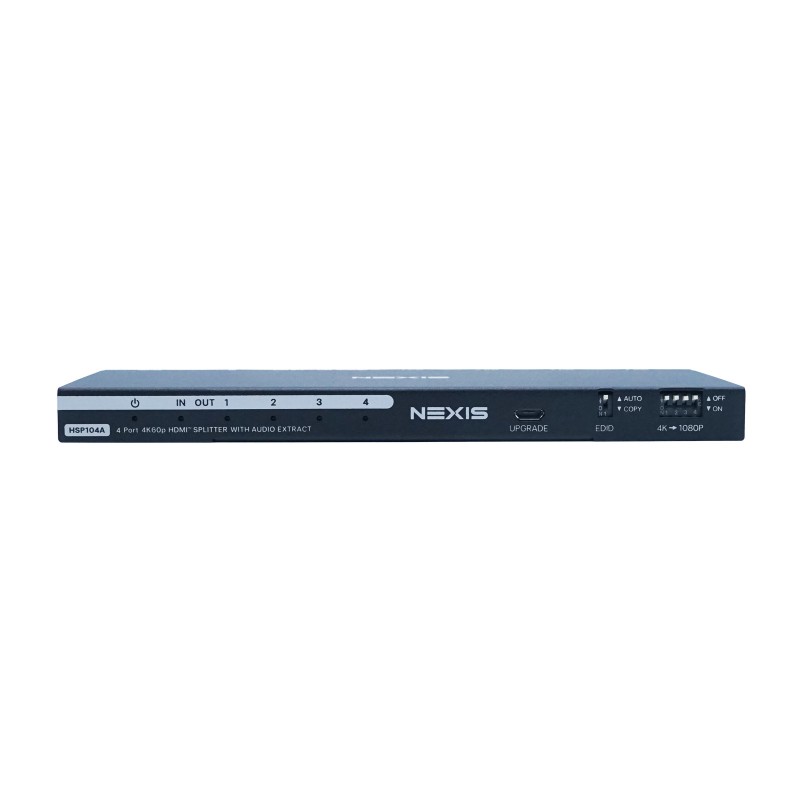

• Supports bypass output and 4K->1080P resolution scaling via a front panel button.
• EDID can be set to COPY or AUTO mode via a front panel button.
  COPY: Uses the resolution of Output 1 for all remaining outputs. If Output 1 is not connected, it will use the resolution of Output 2. If neither Output 1 nor 2 is connected, it will use the resolution of Output 3.
  AUTO: Outputs 1-4 will use the best possible resolution for each display.

• Supports PCM 2.0 analog audio.
• Supports optical audio pass-through formats including LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.

Diagram

Specifications

Package content

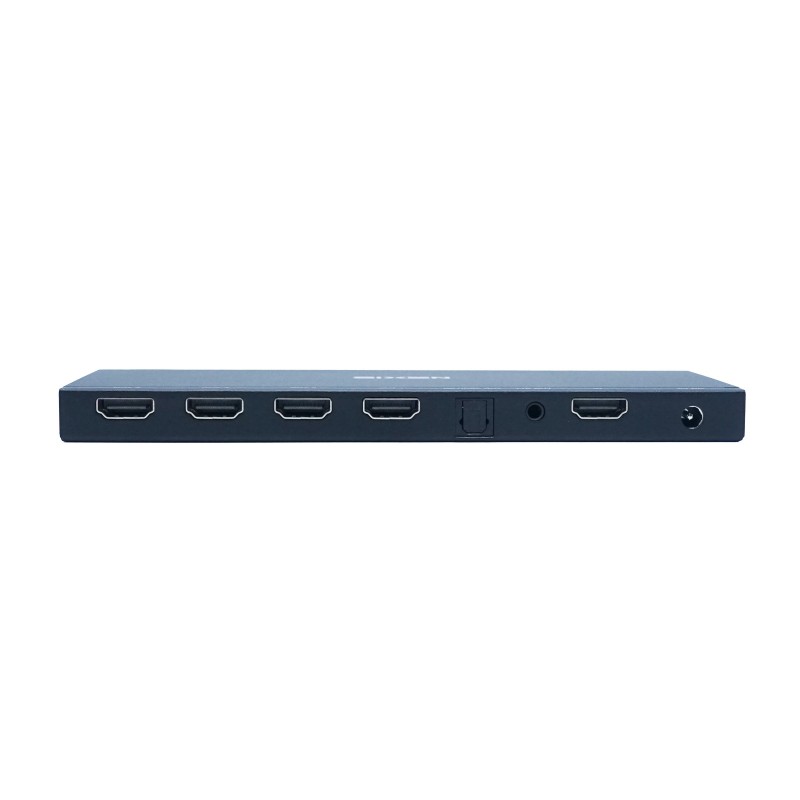

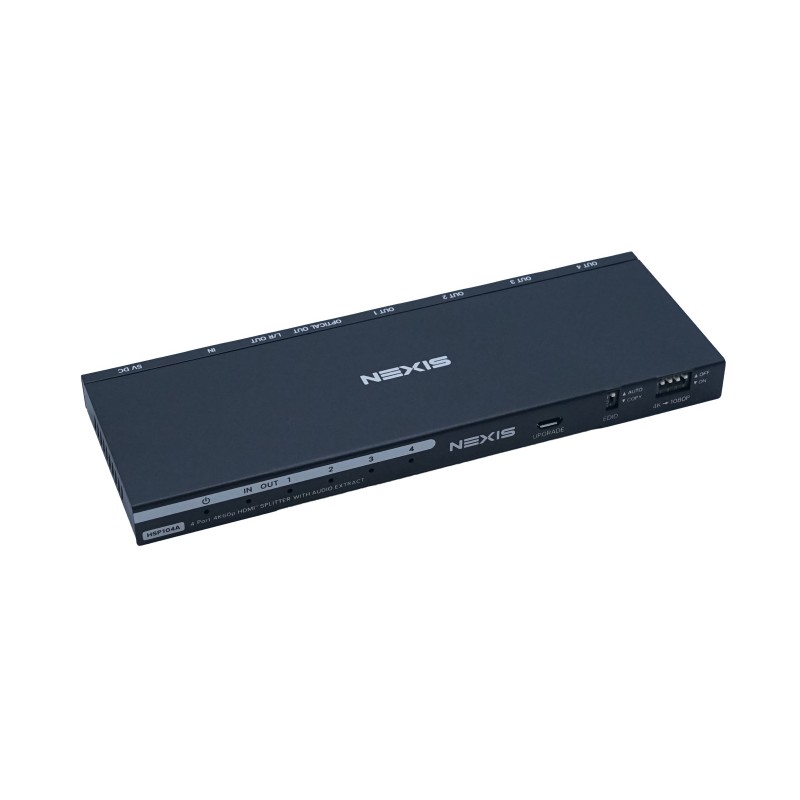

• 1× 1×4 HDMI 2.0 Splitter
• 1× 5V/1A Power Adapter
• 1× User Manual
